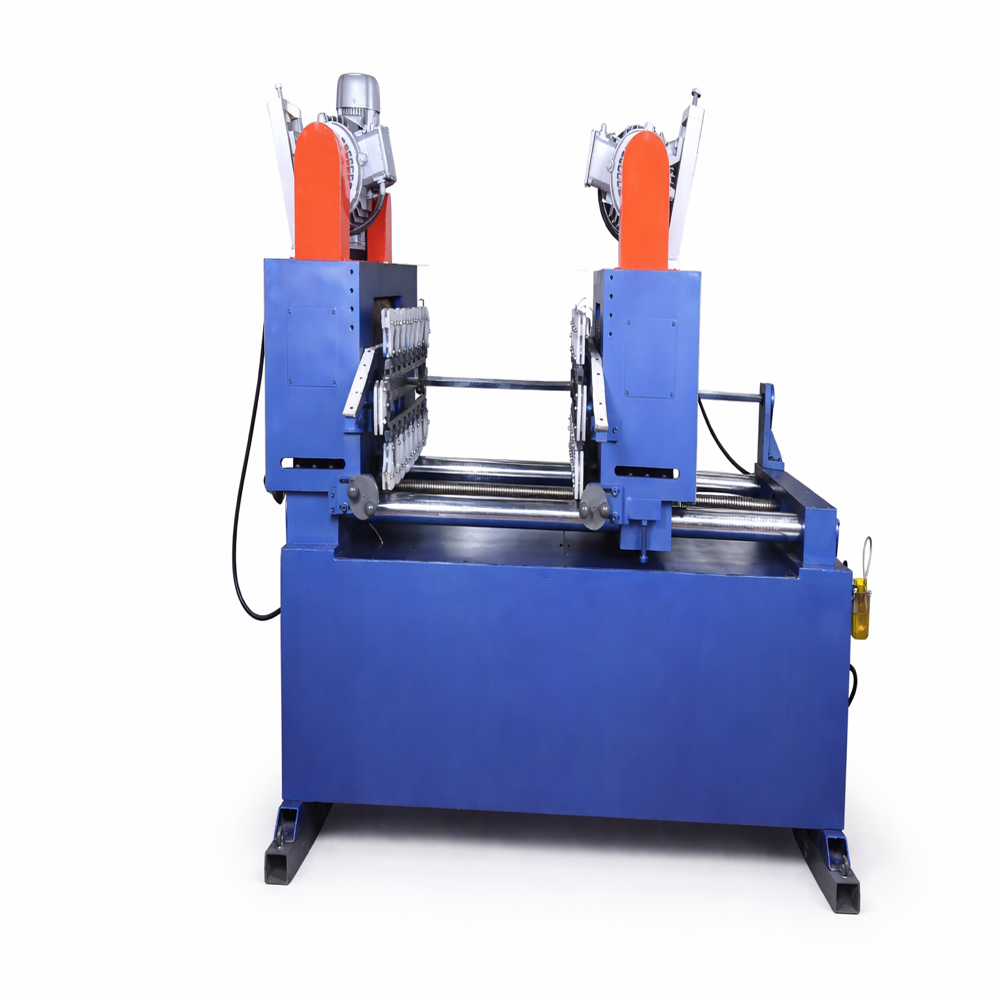

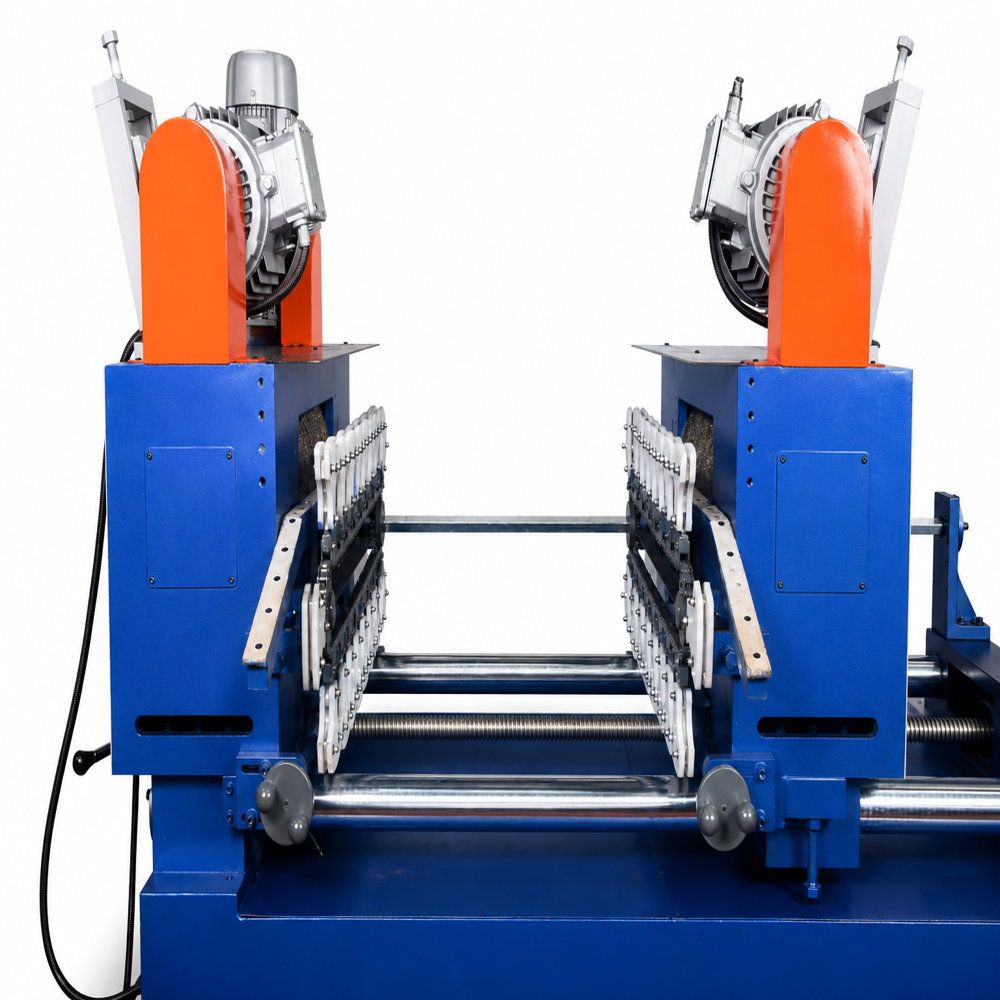

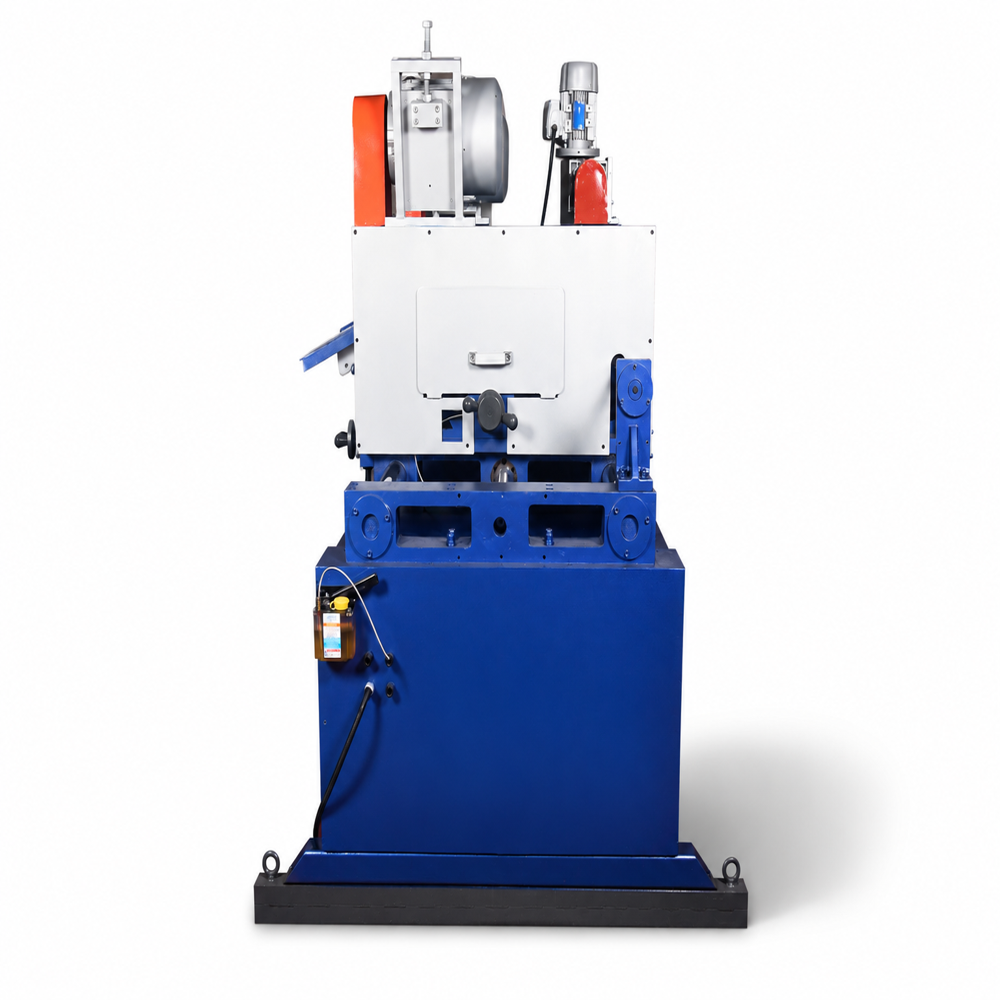

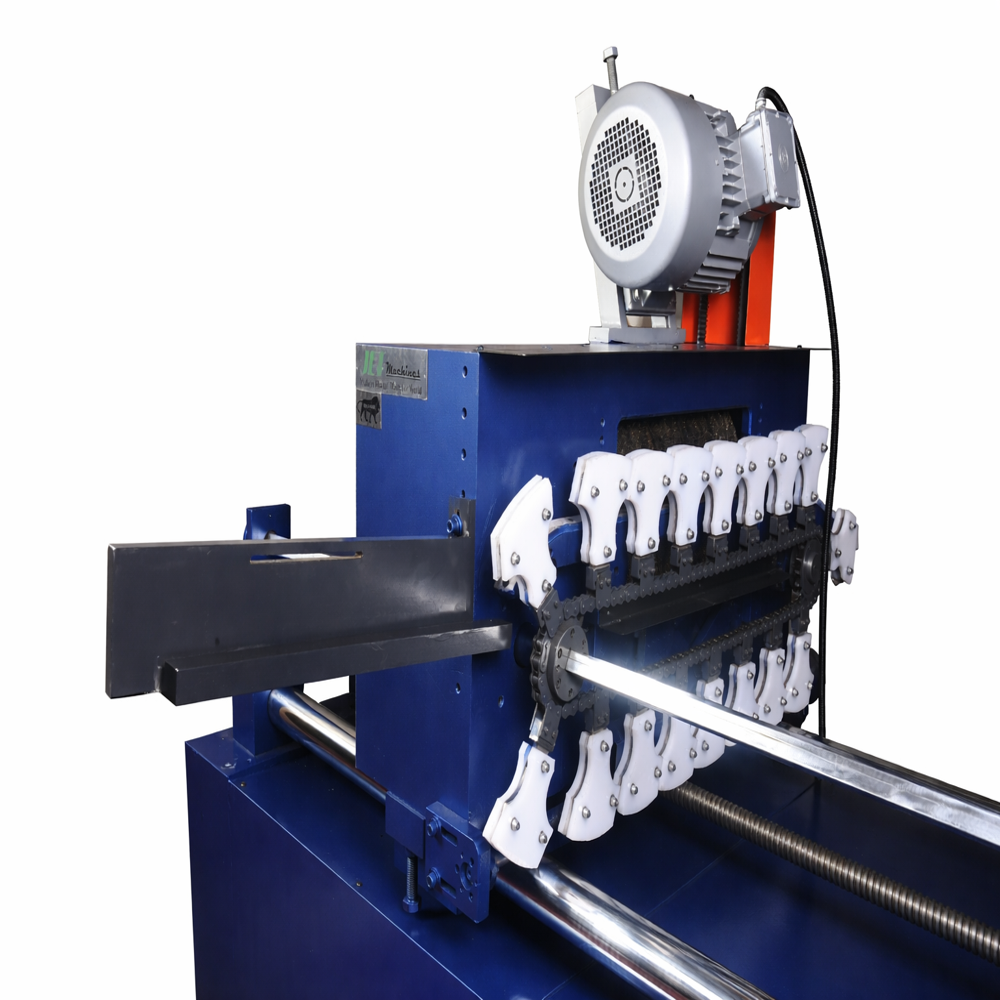

Automatic Wire De-burring Machine

Product Description

Automatic Wire De-burring Machine has been built with the ruggedness and high durability. These have been made to debur the tubes, profiles and bars automatically. These assure smooth operation with their featured conveying chains as well as sprockets that has been provided for an uninterrupted production. It allows for advanced operation and simply accessible adjustments. The machine performs well in all sort of operation. It gives smooth and safe operation to the wearers.

Specification:

• Thickness of input tubes : 0.4mm - 3mm
• Diameter of tubes : 20mm - 70mm
• Brush length : 1200 - 1750
• Capacity : 20 - 25 pcs/min
• Electrical component and VFD : Schneider

Other Details:

• Main Motor : 7.5 Hp (1400 rpm) * 2 Nos.
• Operating Size : Minimum 20 mm OD , Maximum 70 OD
• Operating length : Minimum 250 mm , maximum 1000 mm
